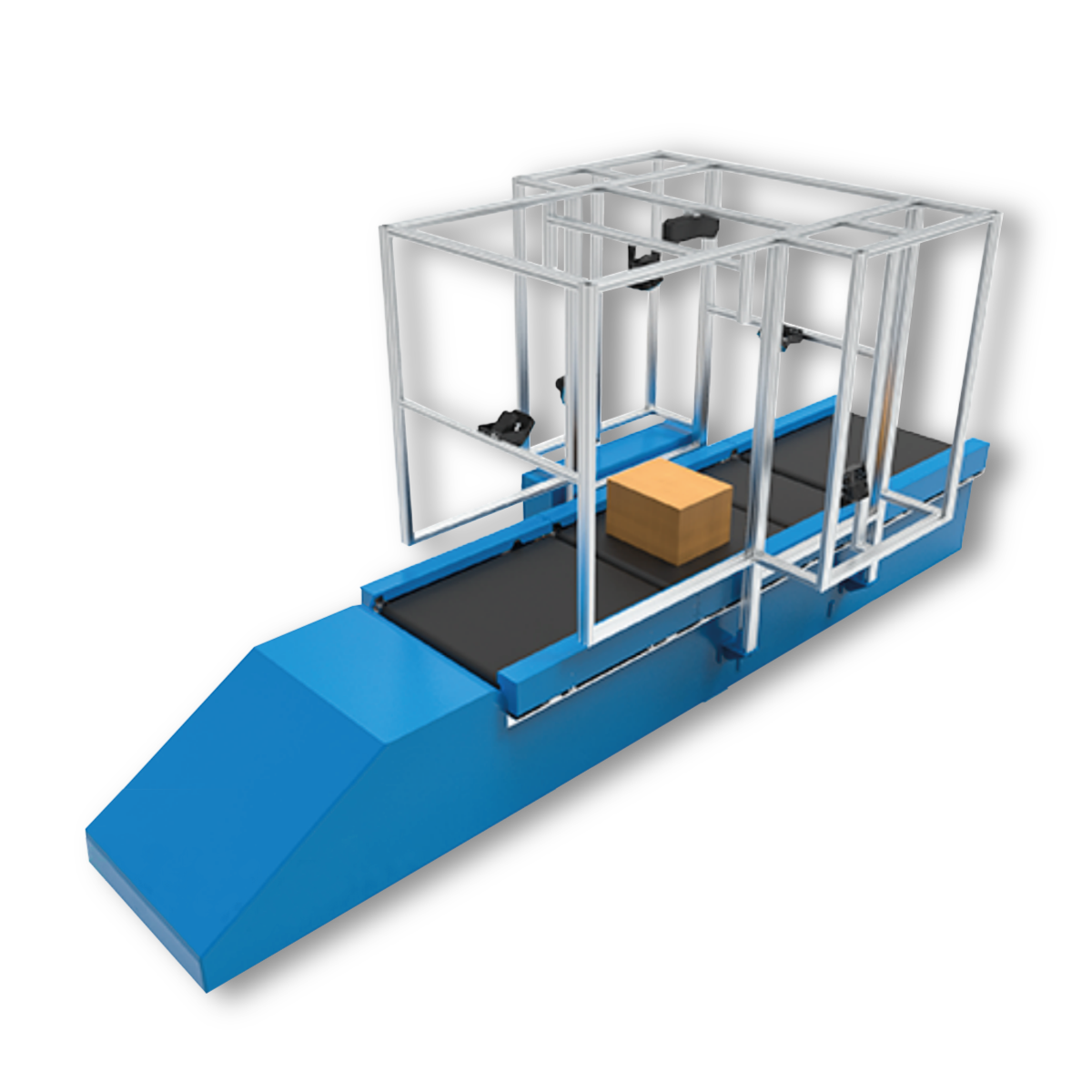

Dynamic weighing system is a set
of data information collection system
including volume, weight and barcode.
The main body consists of 3 sections of
conveyor: buffer section, weighing section
and abnormal processing section. The
camera section is composed of code
reading camera and volume camera, and
the information summary is completed by
the upper computer system, mainly used
for dynamic information processing of
parcels(goods), specifically applied to
barcode scanning, weighing, parcel
counting and waybill image collection and
preservation of parcels when receiving
and sending in logistics industry.
Technical Item
Single-deck
Double-deck
Sorting capacity
2800pcs/h
4000pcs/h
(3300~5000pcs/h, depending on the proportion of large and small parcels)
Speed of sorting line
≤2m/s
≤2m/s
Barcode recognition rate
≧98%
(Eliminating parcels with abnormal
barcodes which have stains, folding, etc.)
≧98%
(Eliminating parcels with abnormal
barcodes which have stains, folding, etc.)
Dimensional tolerance
≤10mm
(Single-sided dimensional tolerance is
less than 10mm)
